手持式焊接槍替代以前固定光路，對焊接難以接近的部位施行柔性傳輸非接觸焊接,具有更大的靈活性。實現遠距離激光焊接，克服工作臺行程空間的局限性，為更精密的焊接提供了條件。
The handheld welding gun replaces the fixed optical path before, and flexible transmission non-contact welding is applied to the parts that are difficult to access, so it has greater flexibility. Long-distance laser welding can overcome the limitation of worktable travel space and provide conditions for more precise welding.
加工優勢ADVANTAGES
1.手持焊接頭輕便靈活，操作方便簡易，滿足多種角度、多種位置的焊接；
2.手持式焊頭可配備5米/10米進口光纖，靈活方便可以實現戶外焊接；
3. 采用紅外線定位，用于焊接頭位置校對和焊接時的位置驗證，焊接位置更準確，確保焊縫更美觀；
4. 激光焊接深度大， 焊接牢固；
5.不易變形，易打磨拋光，解決了使用氬弧焊出現的焊穿、焊瘤、焊接質量等問題；
6. 也適用各種復雜焊縫， 各種器件的點焊。
1. The hand-held welding gun is portable and flexible, easy to operate, and can meet the requirements of welding at various angles and positions.
2.The hand-held welding gun can equip with 5meters/10meters optical fiber,which is flexible and convenient for outdoor welding.
3. Infrared positioning is used to correct the position of welding joint and verify the position during welding. The welding position is more accurate and the welding seam is more beautiful.
4.The laser welding depth is deep and firm.
5. It is not easy to be deformed, easy to be grinding and polished. The problems of welding penetration, welding nodule and welding quality in argon arc welding are solved.
6. It is also suitable for spot welding of various complex welds and devices.
應用范圍APPLICATIONS
1. 鈑金、機箱、水箱的激光焊接
2. 廚衛、洗手盆類五金激光密封焊接
3. 各類五金燈具激光焊接
4. 門窗框架類激光焊接
5. 廣告牌、廣告字激光焊接
1. Laser welding of sheet metal, chassis and water tank.
2. Laser Sealing Welding of Kitchen and Sanitary Hardware.
3. Laser welding of various kinds of hardware lamps.
4. Laser welding of door and window frames.
5. Laser welding of billboard.
技術參數TECHNICAL PARAMETERS
|
Maximum Power |
200w |
500w |
800w |
1000w |
2000w |
|
激光波長 Laser Wavelength |
1.06um |
1.06um |
1.06um |
1.06um |
1.06um |
|
焊接頻率 Welding Frequency |
≤50Hz |
≤100Hz |
≤100Hz |
≤150Hz |
≤200Hz |
|
焊接深度 Welding Depth |
0.1-1.0mm |
1.0-2.0mm |
2.0mm |
2-3mm |
4-5mm |
|
脈沖寬度 Pulse Width |
0.5-20ms |
0.5-20ms |
0.5-20ms |
0.5-20ms |
0.5-20ms |
|
電力輸出 Power Output |
220v/50Hz |
220v/50Hz |
220v/50Hz |
380v/50Hz |
380v/50Hz |
|
冷卻方式 Cooling Mode |
循環水冷 Circulating water cooling |
循環水冷 Circulating water cooling |
循環水冷 Circulating water cooling |
循環水冷 Circulating water cooling |
循環水冷 Circulating water cooling |
|
定位系統 Positioning System |
|
紅光指示 Red light positioning |
紅光指示 Red light positioning |
紅光指示 Red light positioning |
紅光指示 Red light positioning |
|
工作方式 Operation Mode |
脈沖 Pulse |
連續脈沖 Continuous pulse |
連續脈沖 Continuous pulse |
連續脈沖 Continuous pulse |
連續脈沖 Continuous pulse |
|
輸出光路 Output Optical Path |
1-4可選 1-4 Optional |
1-4可選 1-4 Optional |
-- |
-- |
-- |
|
電流峰值 Peak Current |
50-230A |
50-500A |
-- |
-- |
-- |

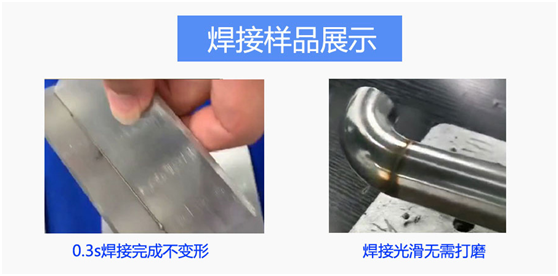

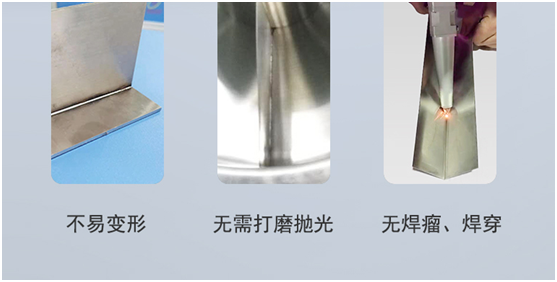

加工效果 EFFECTS
