產品特點
通過內部靈活的光學組合實現分時分能量多工位同時焊接，光纖傳輸?shù)墓馐|(zhì)量更好，光斑細、能量分布均勻，焊點大小均勻，深度一致。
Product features
The internal flexible optical combination can realize simultaneous welding at multiple stations with dividing time and energy. The beam quality transmitted by optical fiber is better. The spot size is fine, the energy distribution is uniform, the welding spot size is uniform, and the depth is consistent.
產品介紹
光纖振鏡式激光焊接機，它是將高能激光束耦合進入光纖，距離傳輸后，通過準直鏡準直為平行光， 再聚焦于工件上實施焊接的一種激光焊接設備。電光轉換效率高，激光能量閉環反饋控制激光電源，避免了氙燈老化對激光功率的影響，比電流反饋型設備的輸出更加穩定，脈沖波形最多可任意設定16段，半導體紅光指示定位，能適合各種形狀復雜工件的加工，減小對工裝夾具的要求。
Product introduction
Optical fiber galvanometer laser welding machine, it is a kind of laser welding equipment which combines high energy laser beam into optical fiber, after distance transmission, collimates into parallel light through collimator, and then focuses on the workpiece for welding. Electro-optic conversion efficiency is high. The closed-loop feedback controls laser power, so as to avoid the xenon lamp aging influence on laser power, output is more stable than current feedback type equipment. Pulse wave can be set 16 segments, with semiconductor red indicator, it can be suitable for all kinds of complicated shape workpiece processing, reduce the requirement of jig.
應用范圍

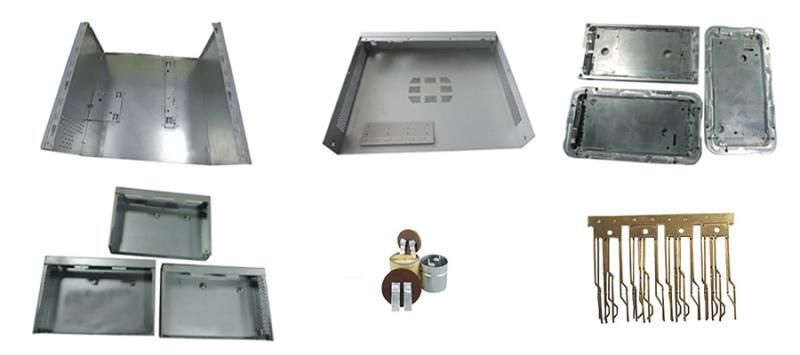

可用于電子、通訊、五金等行業大批量生產企業的離線/在線焊接。主要應用領域包括手機屏蔽罩、金屬手機外殼、金屬電容器外殼、硬盤、微電機、傳感器以及其他相干產品的高效率激光點焊或密封焊。
Applications
It can be used for electronic, communication, hardware and other industries mass production enterprises offline/online welding. The main application fields include high efficiency laser spot welding or sealing welding of mobile phone shielding, metal mobile phone cover, metal capacitor cover, hard disk, micro-motor, sensor and other related products.
技術參數 Technical parameters:
|
設備型號 Model |
LK-QWF200 |
LK-QWF300 |
|
|
最大激光輸出功率 Max. laser output power |
200W |
300W |
|
|
激光類型 Laser type |
光纖Optical fiber |
光纖 Optical fiber |
|
|
激光波長Laser wavelength |
1064um |
1064um |
|
|
脈寬 Pulse width |
0.1ms-45ms |
0.1ms-45ms |
|
|
單脈沖最大能量 Max. energy of single pulse |
80J |
120J |
|
|
脈沖頻率Pulse frequency |
100HZ |
100Hz |
|
|
激光焊接深度Welding depth |
0.1-1mm |
0.1-1mm |
|
|
激光焊接范圍Welding range |
200*200mm |
200*200mm |
|
|
光斑調整范圍 Adjusting range of light spot |
0-1.8mm |
1.8mm |
|
|
標準工作臺最大承載 Max. bearing of standard workbench |
25KG |
25KG |
|
|
工作光束重復精度 Repeat precision of beam |
-0.001 |
-0.001 |
|
|
工作光束定位精度 Positioning precision of beam |
-0.001 |
-0.001 |
|
|
瞄準定位系統Positioning system |
HD-CCD監控系統 Monitoring |
HD-CCD監控系統 Monitoring |
|
|
冷卻系統 Cooling system |
水冷 Water cooling |
水冷 Water cooling |
|
|
電源額定輸出功率 Rated output power |
6KW |
8KW |
|
|
整機功率Total power |
6KW |
8KW |
|
|
電力需求Power supply |
AC220VAC/380VAV+-15%/50HZ/25A |
||
|
機器外觀尺寸Dimension |
650*1220*1160mm |
650*1220*1160mm |
|
