關鍵元器件如陶瓷激光腔體采用國際知名廠家的產品，保證了設備的高可靠和高性能。
獨特的YAG晶體冷卻方式，提高了光束質量和氙燈的壽命，降低了使用費用。
Applications
The equipment can weld gold, silver, platinum, titanium and alloy, nickel belt and other materials.

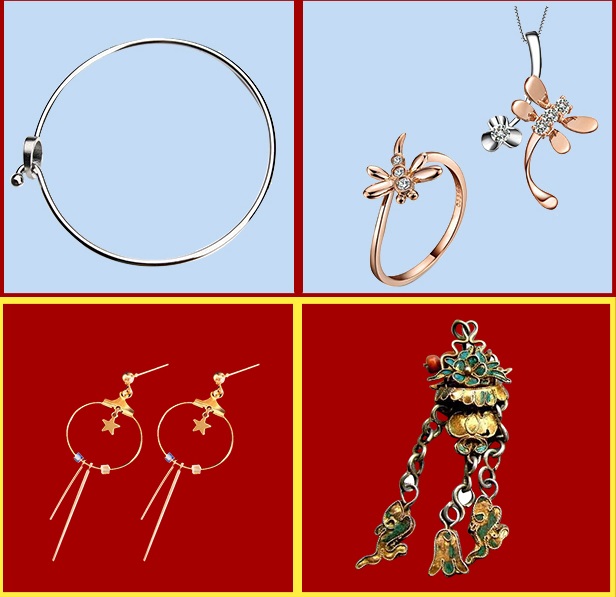

It can be used for jewelry, watch hairspring, the precision welding of micro thermal sensitive parts of IC leads, and it is suitable for photoelectric devices, electronics, communication, machinery, automobile, military industry, gold jewelry and other industries.
|
激光工作物質 Laser type : |
Nd:YAG |
|
波長 Wavelength: |
1064 nm |
|
額定輸出功率 Rated output power : |
60W |
|
聚焦光斑直徑Focusing spot diameter: |
0.02 1.5 mm Φ (adjustable) |
|
閃光燈電壓 Flash voltage : |
100V-400V |
|
脈沖寬度 Pulse width : |
0.5ms-10ms(adjustable) |
|
保護氣體 Protective gas : |
1 channel |
|
電源 Power supply: |
single-phase,220V |
|
功率消耗 Power consumption: |
maximum 3500W |
|
外型尺寸External dimension : |
895X500X1100mm(length, width, height) |
|
冷水機 Cooling machine: |
1 HP |

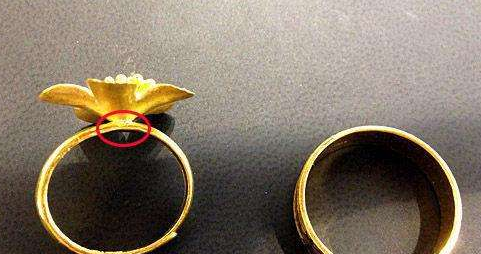

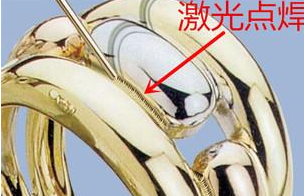

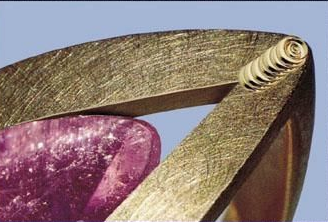

效果圖：
